3D-302G
Green Beam

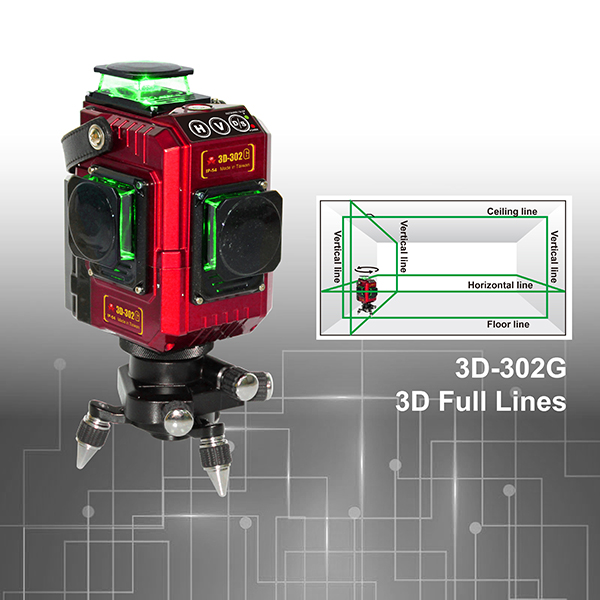

3D Full Lines
◎ Green beam technology which is brighter 5 times than Red beam
◎ 3D Full Laser beams to save more than 60% working time and 50% manpower.
◎ The laser beams can be as closed as 8mm from the wall
◎ Easy to layout at the same time for 90° inner corner by one laser level
◎ Easy to layout at the same time for 90° external corner by one laser level
◎ Manual-Slope function makes any kinds layout project easily
◎ Li-ion Battery for supporting long time working
◎ IP54 protection
◎ Continuous cone line laser beam window
| Model | 3D-302G |
| Laser Beam | 3D Full lines |
| IP Grade | IP-54 |
| Laser Class | Class 2M |
| Accuracy | ±1mm/7m |
| Leveling Range | ±3° |
| Working Range | Dia. 50m (W/Detector) |
| Power Supply | Li-ion |
| Working Temperature | -10℃~+50℃ |
| Size | 128x95x140mm |
| Weight | 0.9kg(1.3Kg with Fine-Adjustment Table） |
