Green Beam

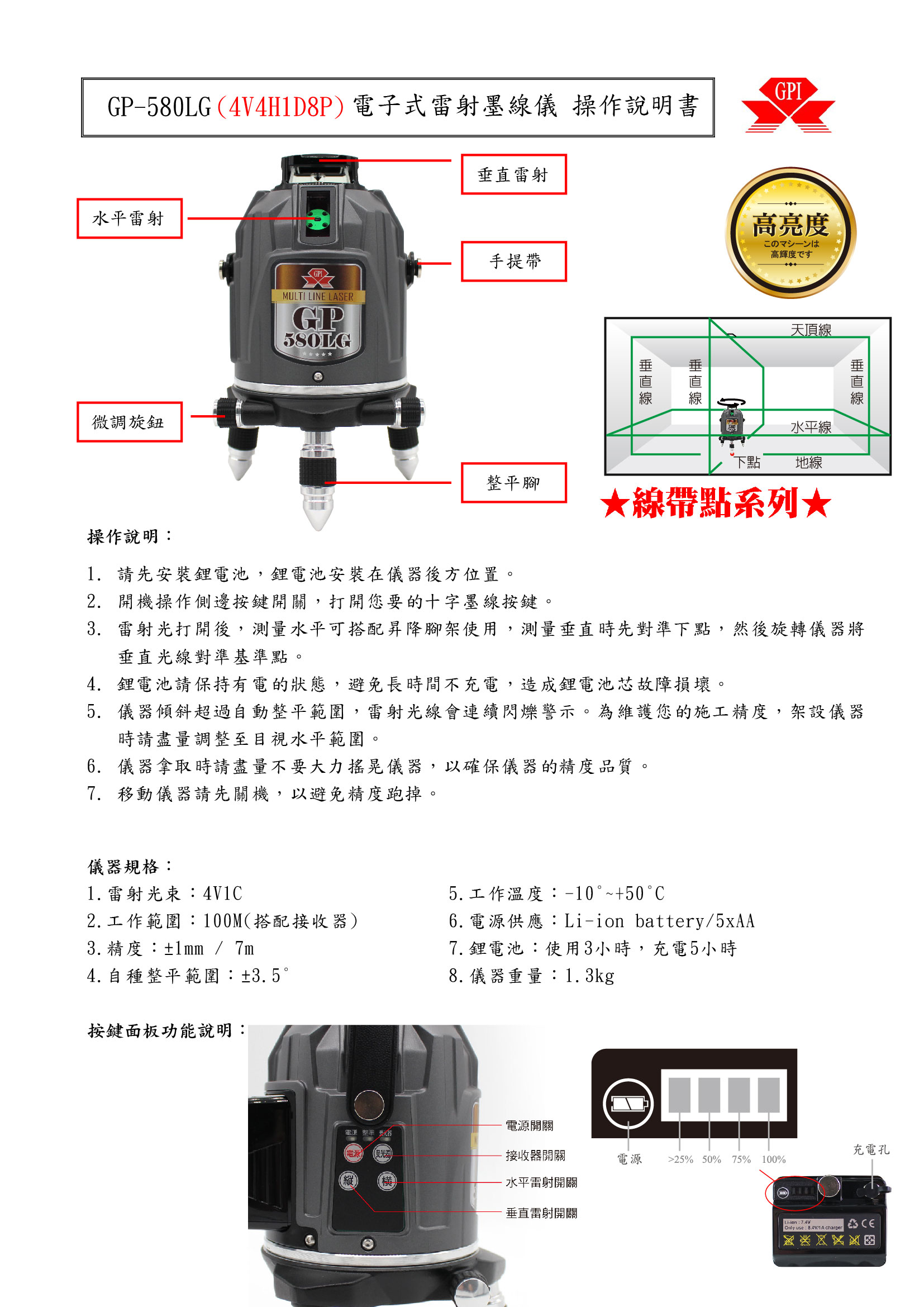

Operation Manual DM
◎ Eletronic Tilt Sensor Compensator ensure more stable self leveling in high building.
◎ 3D Full Laser beams to save more than 60% working time and 50% manpower.
◎ Green beam technology which is brighter 5 times than Red beam
◎ Patented Manual-Slope function makes any kinds layout project easily
◎ Adapt Voice Alarm System
◎ Adapt Temperature Alarm System to protect laser module for longer working life

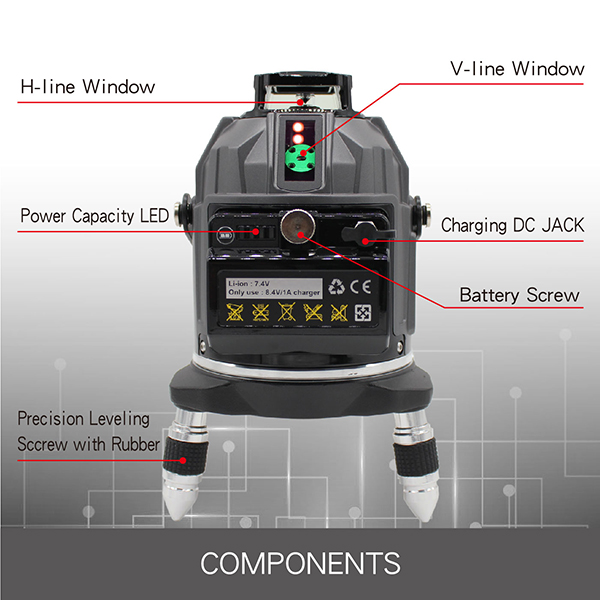

◎ Li-ion Battery with power capacity indicator LED for long time working
◎ IP54 protection
◎ Continuous cone line laser beam window

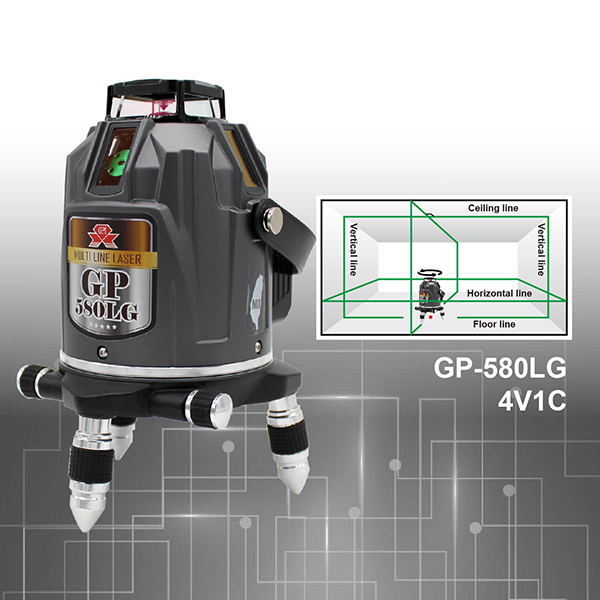

Model GP-580LG
Laser Beam 4V1C1D
IP Grade IP-54
Laser Class Class 2M
Accuracy ±1mm/7m
Leveling Range ±3.5°
Working Range Dia. 100m (W/Detector)
Power Supply Li-ion(with power capacity LED)
Working Temperature -10℃~+50℃
Size Φ108x200mm
Weight 1.3kg(with Battery)
