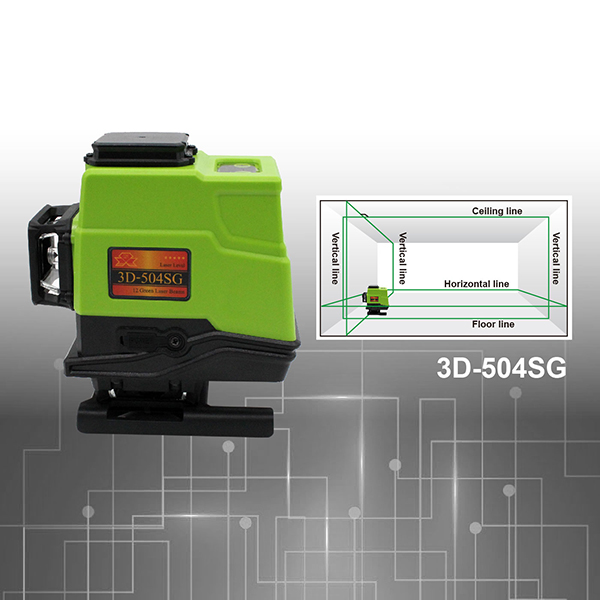

3D-504SG
Green Beam
12線
◎ Green beam technology which is brighter 5 times than Red beam
◎ 3D Full Laser beams to save more than 60% working time and 50% manpower.
◎ The laser beams can be as closed as 8mm from the wall
◎ The laser beams can be as closed as 15mm from the floor
◎ Easy to layout at the same time for 90〫inner corner by one laser level
◎ Easy to layout at the same time for 90〫external corner by one laser level
◎ Li-ion Battery for supporting long time working
| Model | 3D-504SG |
| Laser Beam | 3D Full lines |
| Laser Class | Class 2M |
| Accuracy | ±1mm/7m |
| Leveling Range | ±3° |
| Working Range | Dia.50m (W/Detector) |
| Power Supply | Li-ion |
| Working Temperature | -10℃~+50℃ |
| Size | 125x85x140mm |
| Weight | 0.65kg |
