GPI-700
◎ 1000M Laser distance measure in reflectorless mode: Equipped with an absolute encoding system. The users can directly proceed with the measurement after power-on of the instrument. This is very convenient for the users to operate the instrument.
◎ Distance Measurement: New EDM board is smaller and more stable. This is helpful to the measurement stabilization and the quick repair .
◎ Special measurement program: Equipped with the basically often-used function of measurement as well as the special measurement program. This can make the measurement for REM、 Offset measurement、MLM、Resection、Area、 Traverse and Point projection, which can meet the different requirements of the instrument.
◎ Memory: Being able to save 20,000 positions in memory and can record the message of measurement points.
◎ Temperature and pressure sensor ( optional ): For the changeable pressure and temperature, inbuilt temperature sensor and pressure sensor can be helpful for the measurement of high accuracy .
◎ Transmission Interface: PC interface and USB terminal are provided. This is very helpful for the convenience of the data transmission.
◎ Quick Repair Diagnosis System ( RS-1 ) : For the distributors who have their own repair ability, we can provide them with this quick repair diagnosis system. For example; Horizontal level / Vertical reading, instable measurement problem and so on. Through the PC interface and USB interface, the technician can directly proceed with the repair of the instrument.
| Model No. | GPI-700 |
|---|---|
| Angle Measurement | |
| Measurement Method | Absolute encoder |
| Minimum Readout | 1" / 5" / 10" ( 0.3mgon / 1.5mgon / 3mgon ) |
| Accuracy | 2" |
| Distance Measurement ( Reflector ) | |
| Single Prism | 5000m (under good condition3) |
| Reflective Sheet | 1000m |
| Accuracy | 2mm + 2ppm |
| Measuring Time | ( Fine / Tracking ) : 0.8s / 0.3s |
| Distance Measurement ( Reflectorless ) | |
| Reflectorless2 Range | 0.3 ~ 400m(1000m option) |
| Accuracy | 3mm + 2ppm |
| Measuring Time | 1.5s |

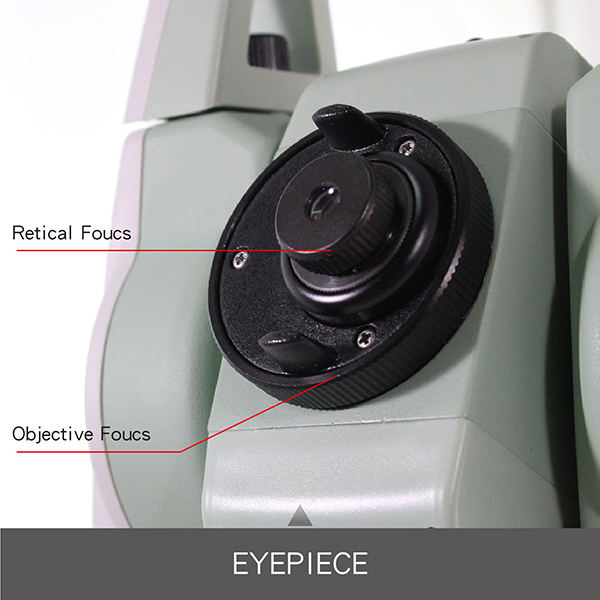

| Telescope | |
| Magnification | 30X |
| Field of View | 1°3' |
| Minimum Focusing Distance | 1.2m |
| Image | Erect |
| Reticle | Illuminated |
| Compensator | |
| System | Dual-axis |
| Working Range | ± 3' |
| Setting Accuracy | 1" |
| Communication | |
| Bluetooth | Option |
| Interface | Standard RS-232, USB, mini-B |
| Internal Data Memory | Approx. 20,000 Points, default 8G USB pen drive |
| Data Format | ASCII |
| Operation | |
| Operation system | Real-time Operating System |

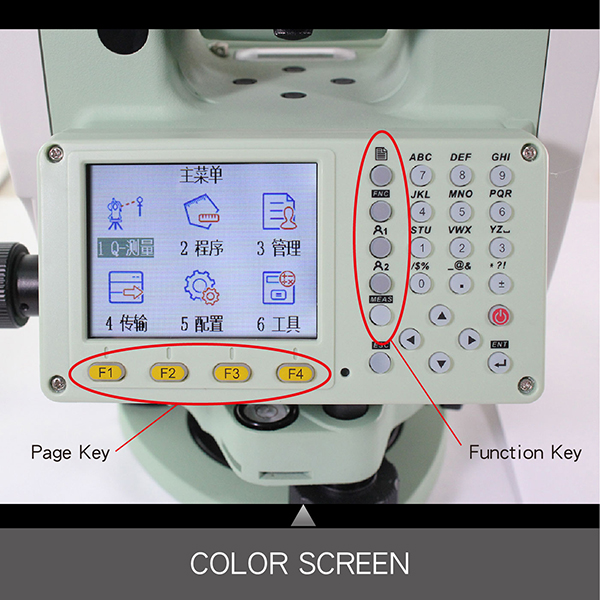

| Display | True Color : 320 x 240 TFT Screen |
| Keyboard | 2 sides Alphanumeric backlit crystal keyboard |
| Trigger key | Approx. 12000 times |
| Laser Plummet | |
| Type | Laser point, 4 brightness levels adjustment / Optical plummet ( optional ) |
| Centering Accuracy | 1mm at 1.5m instrument height |
| Power Supply | |
| Battery Type | Rechargeable Li-ion battery |
| Voltage / Capacity | BT10: 7.4V ( DC ) / 3000mAh |
| Operating Time With BT10 | Optimal 16 hours ( Continuous angle and distance measurement every 30 seconds ) / 10 hours ( typical ) |
| Measuring Times | Approx. 12000 times |
| Others | |
| Water Protection | IP55 ( IEC60529 ) |
| Dimensions | 160 x 150 x 330 mm |
| Weight | 5.2 kg |
| Operating temperature | –20℃ ~ +50℃ |
| Standard accessories | Li-ion Battery x 2, Charger x 1, Strap x 1,Transmission cable x 1 Operating manual x 1, Clean paper x 1, Software disk x 1 |
