Green Beam
Operation Manual DM
◎ Eletronic Tilt Sensor Compensator ensure more stable self leveling in high building.
◎ 3D Full Laser beams to save more than 60% working time and 50% manpower.
◎ Green beam technology which is brighter 5 times than Red beam
◎ Patented Manual-Slope function makes any kinds layout project easily
◎ Build-in Maintenance recorder, communicate with PC makes repair job easily
◎ Adapt Temperature Alarm System to protect laser module for longer working life
◎ Li-ion Battery for supporting long time working
◎ High texture coating housing with IP54 protection

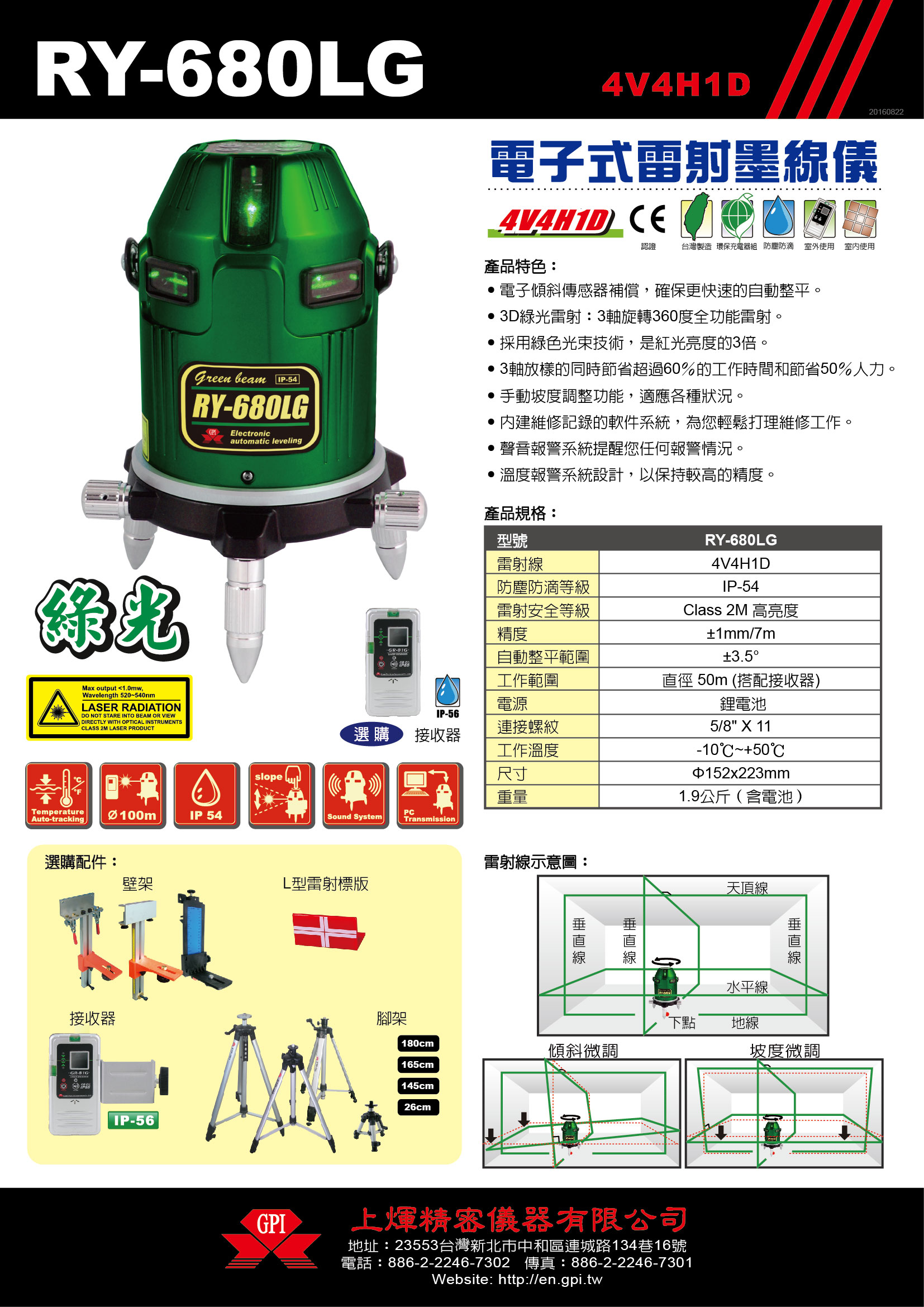

Model RY-680LG

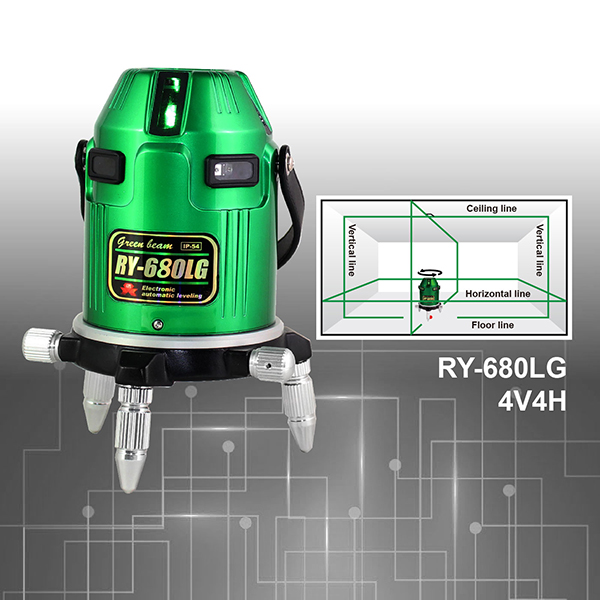

Laser Beam 4V4H1D
Laser Wavelength
520nm for lines, 650nm for DP
IP Grade IP-54
Laser Class Class 2M
Accuracy ±1mm/10m
Leveling Range ±3.5°
Working Range Dia. 100m (W/Detector)
Power Supply Li-ion
Working Temperature -10℃~+50℃
Size Φ152x223mm
Weight 1.9kg( with Batery )
