RY-670LG
Green Beam
4V4H1D

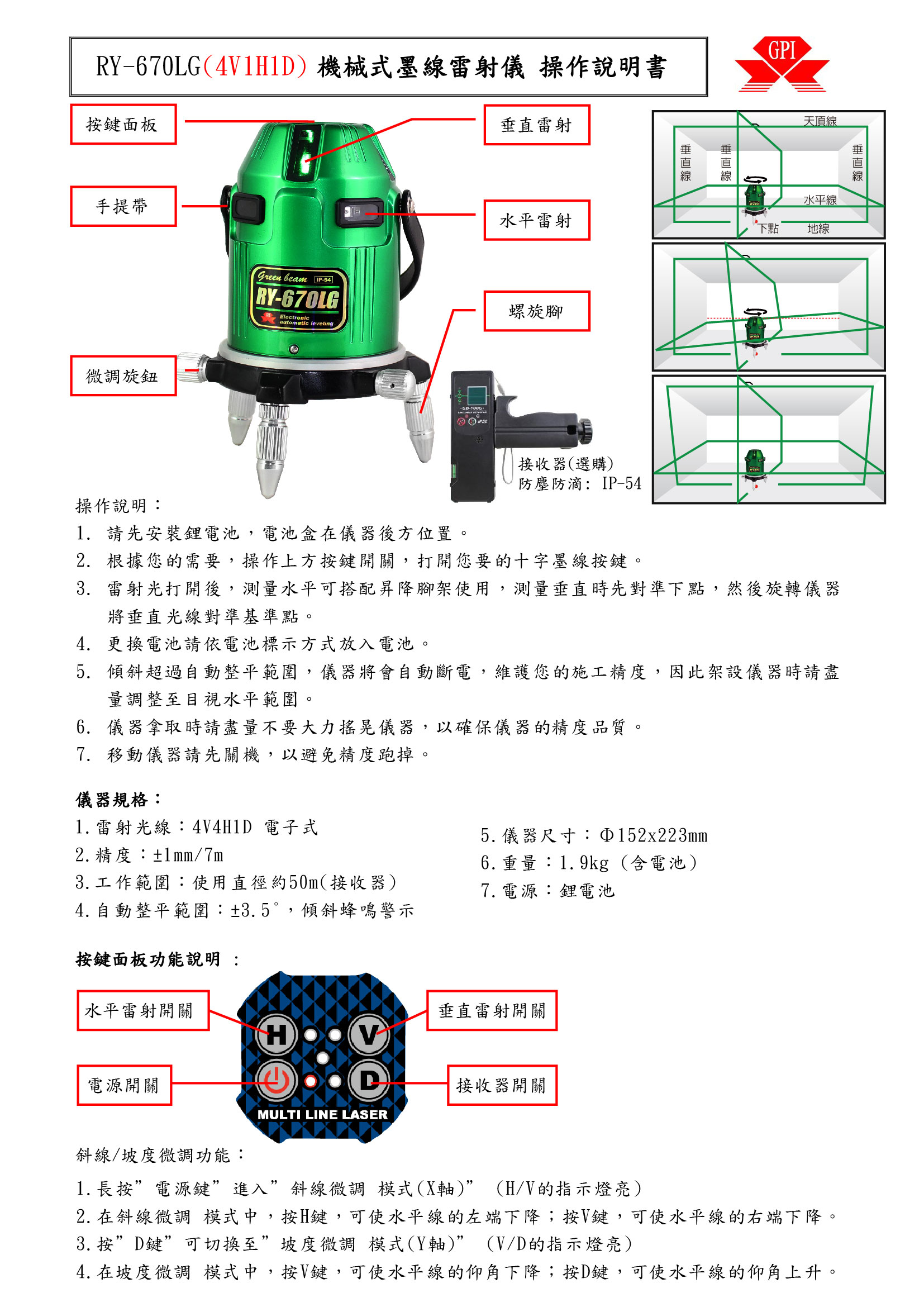

Operation Manual DM
◎ Eletronic Tilt Sensor Compensator ensure more stable self leveling in high building.
◎ 3D Full Laser beams to save more than 60% working time and 50% manpower.
◎ Green beam technology which is brighter 5 times than Red beam
◎ Patented Manual-Slope function makes any kinds layout project easily
◎ Build-in Maintenance recorder, communicate with PC makes repair job easily
◎ Adapt Temperature Alarm System to protect laser module for longer working life
◎ Li-ion Battery for supporting long time working
◎ High texture coating housing with IP54 protection
RY-670LG
RY-670LG
RY-670LG
RY-670LG
RY-670LG
ModelRY-670LG
Laser Beam 4V4H1D
Laser Wavelength
520nm for lines, 650nm for DP
IP GradeIP-54
Laser ClassClass 2M
Accuracy±1mm/10m
Leveling Range±3.5°
Working RangeDia. 100m (W/Detector)
Power SupplyLi-ion
Working Temperature-10℃~+50℃
SizeΦ152x223mm
Weight1.9kg(with Batery)
