GP-570LG
Green Beam
4V4H8P

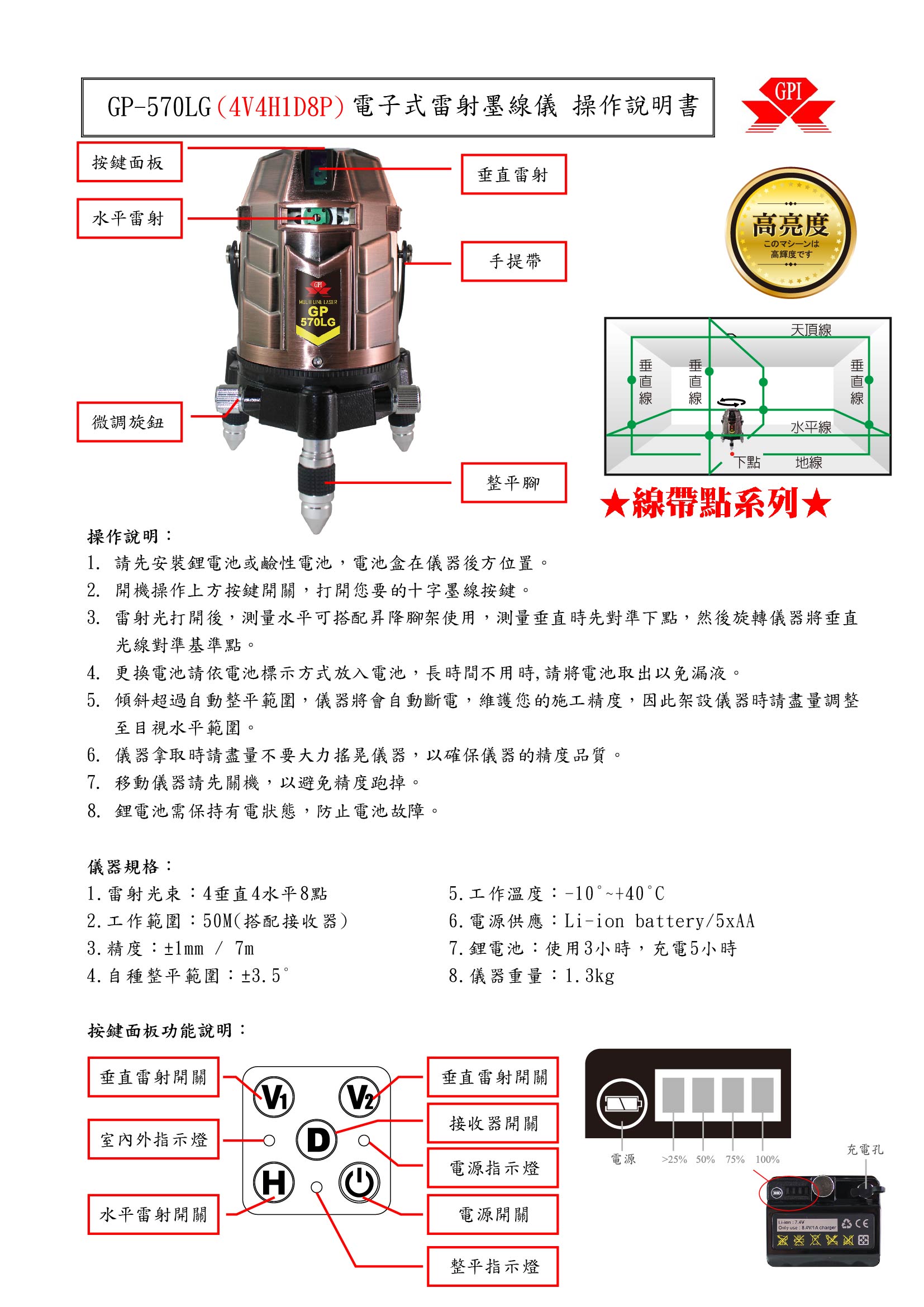

Operation Manual DM
◎ Eletronic Tilt Sensor Compensator ensure more stable self leveling in high building.
◎ 3D Full Laser beams to save more than 60% working time and 50% manpower.
◎ Green beam technology which is brighter 5 times than Red beam
◎ Patented Manual-Slope function makes any kinds layout project easily
◎ Adapt Voice Alarm System
◎ Adapt Temperature Alarm System to protect laser module for longer working life
◎ Li-ion Battery with power capacity LED for long time working
◎ IP54 protection
GP-570LG
GP-570LG
GP-570LG
GP-570LG
GP-570LG
ModelGP-570LG
Laser Beam4V4H8P1D
IP GradeIP-54
Laser ClassClass 2M for Lines / Class 3R for points
Accuracy±1mm/10m
Leveling Range±3.5°
Working RangeDia. 100m (W/Detector)
Power SupplyLi-ion(with power capacity LED)
Working Temperature-10℃~+50℃
SizeΦ108x200mm
Weight1.3kg(with Batery)
